[ HPC Series]
As a professional OEM/ODM partner, we create highly customized mediacl computer for healthcare applications.
The needs of each customer vary depending on the cases they are in and the people they serve, but the pursuit of product reliability remains the same. Wentaida uses a consultative approach and delivers partial to full customized solutions with long-term availability.
After years of partnering with OEMs in industries such as gaming, medical, military/defense, retail, automation/industrial, and transportation, we’re able to bring together the capabilities our customers need:
● Customized engineering design capabilities
● Close partnerships with key suppliers and manufacturers
● Full-process solution support from design, verification to delivery
WTD continues to provide customers with second, third, and even fourth generation product solutions, which is a strong proof of our continuous delivery of value and building long-term trust.

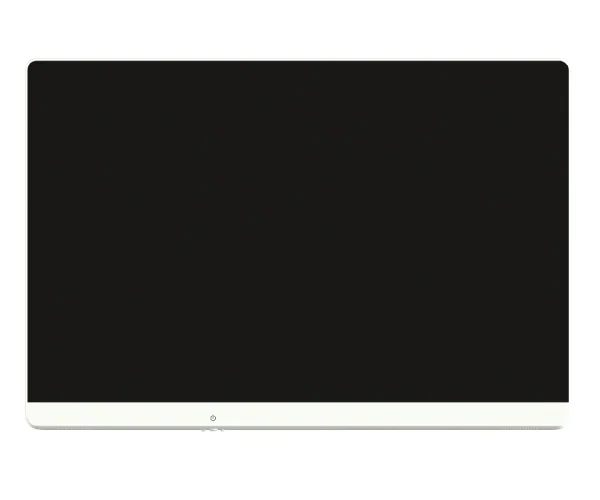

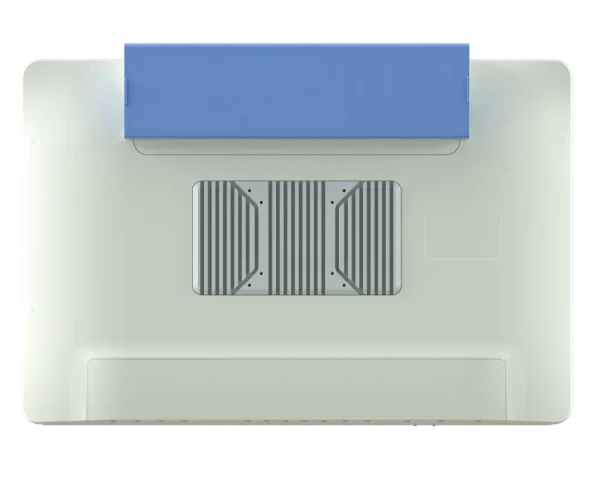

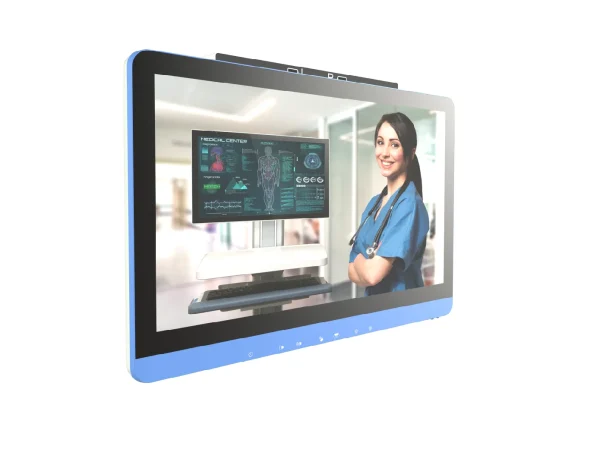

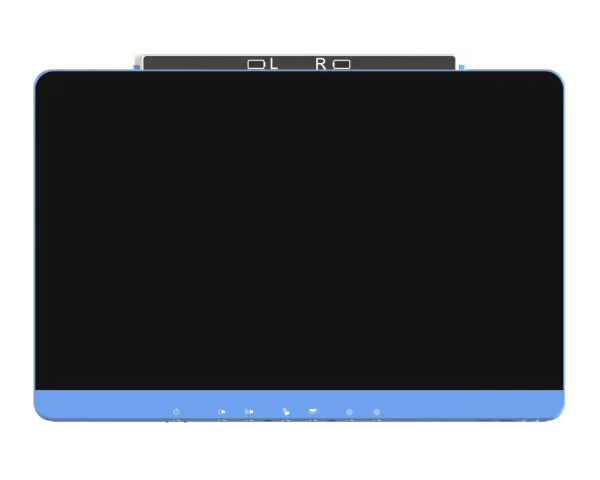

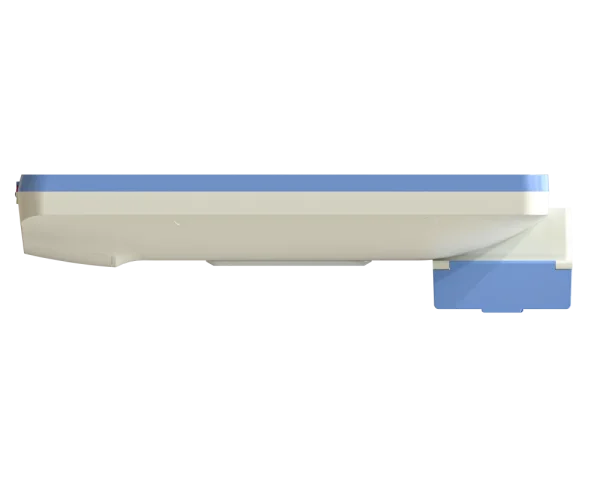

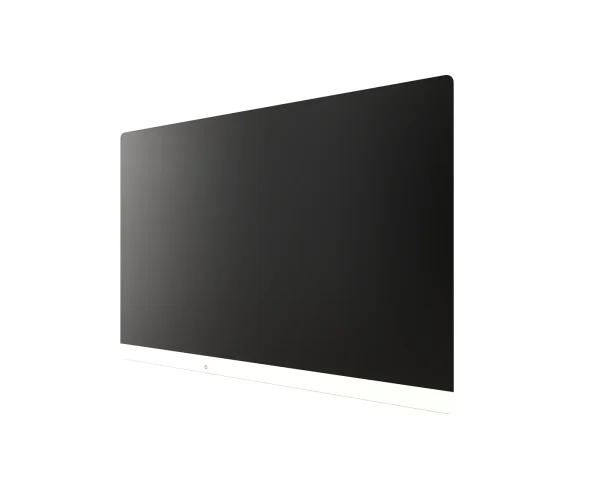

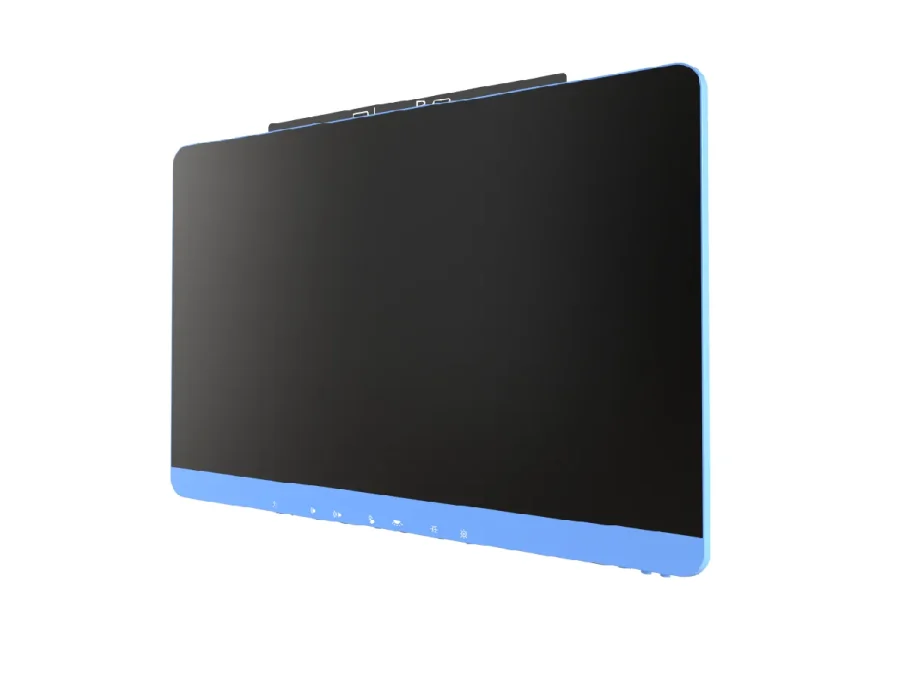

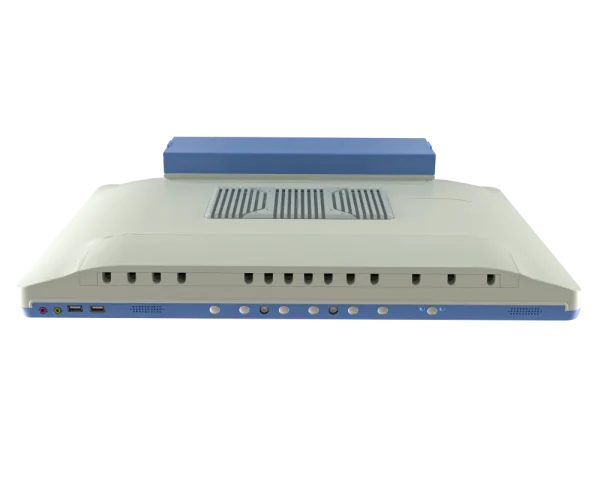

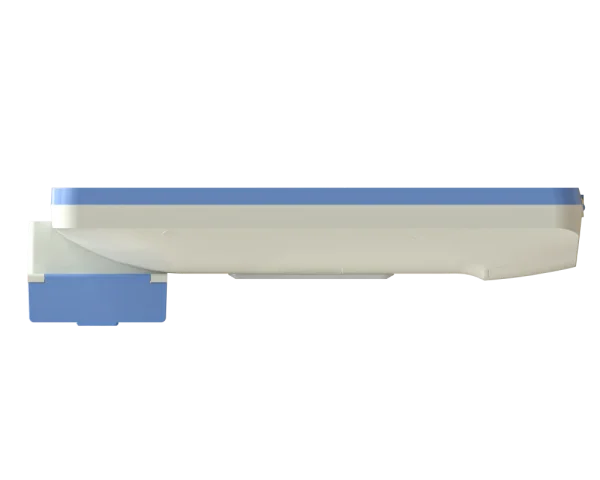

HPC-100 medical all-in-one computer combines a 24″ screen with Intel® 12th generation Alder Lake-U low-power and high-performance platform,
designed for medical scenarios. The slim fanless body, antibacterial coating and waterproof function meet the stringent medical needs. Supporting
wireless networking, multiple information collection modules and integrated UPS battery, it provides an efficient solution for medical information
management.
Specifications:
| System | Processor* | Intel® Core™ i3-1215u(10M cache, up to 4.40 GHz) Intel® Core™ i5-1235u(12M cache, up to 4.40 GHz) |
|||||||||
| Memory (optional) | DDR4 (supports up to 32GB DDR4 SODIMM) | ||||||||||
| Operating System (optional) |
Windows 10 IoT Ent (64 bits only), Linux (supported upon request) | ||||||||||
| Storage | Primary Storage (optional) |
NVME SSD (M.2 2280) | |||||||||
| Secondary Storage (optional) |
2.5″ SATA SSD available | ||||||||||
| Display | Size Max. Resolution |
23.8 inch 1920 x 1080 |
|||||||||
| Touch | Type | 10-point multi touch P-CAP (clear glass); optional antimicrobial/AG/AR support upon request |
|||||||||

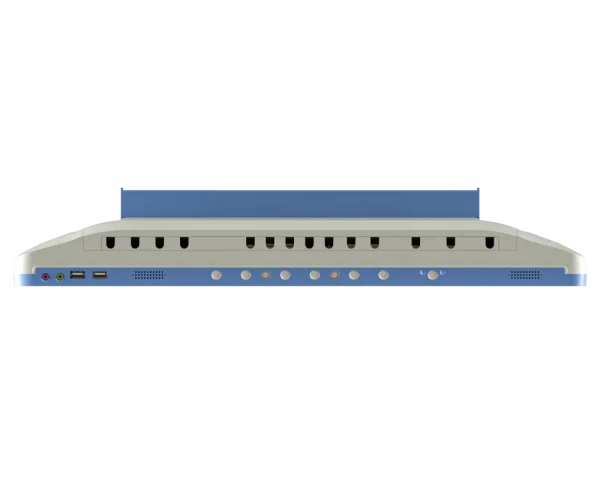

| I/O | USB 3.2 Gen 2 (Type A) |
4 | |||||||||
| USB 3.2 Gen 2 (Type C) |
1 (with display function） | ||||||||||
| USB 2.0 Type A | 2 | ||||||||||
| HDMI | 1 | ||||||||||
| LAN isolation, 1.5KV |
2 | ||||||||||
| Mic- In/Headphone-Ou |
1/1 | ||||||||||
| COM (RS232) 1.5KV |
2 | ||||||||||
| Expansion Slots | PCIe x4** | 1 (card length: 167.65 mm/6.6 in Max) | |||||||||
| M.2 2230 | 1 (for Wi-Fi/Bluetooth module) | ||||||||||
| Mini PCIe | 1 (full size) | ||||||||||
| Other Functions | Speaker | 2 x 2W | |||||||||
| LED Book Light | 2 | ||||||||||
| Camera | 1 x 5 megapixel (optional) | ||||||||||
| TPM 2.0 | 2.0 (default via fTPM –Firmware TPM) | ||||||||||
| Power Input | DC/AC | DC model: 19V, max. 150W/AC model: 100 ~ 240V, max. 250W (choose either DC or AC model) |
|||||||||
| IP Rating | Front Panel | IP65 | |||||||||
| System | IP54 | ||||||||||
| Authentication Solution (Choose 1) |
RFID Reader | Optional (choose either RFID or smart card reader) | |||||||||
| Smart Card Reader | Optional (choose either RFID or smart card reader) | ||||||||||
| Battery Solutions (Choose 1) |
Backup Battery** | Optional (choose either 1 backup battery or PCIex4) | |||||||||
| Hot-Swapping Battery Module |
Optional with 2 x batteries (choose either backup battery or battery module) | ||||||||||

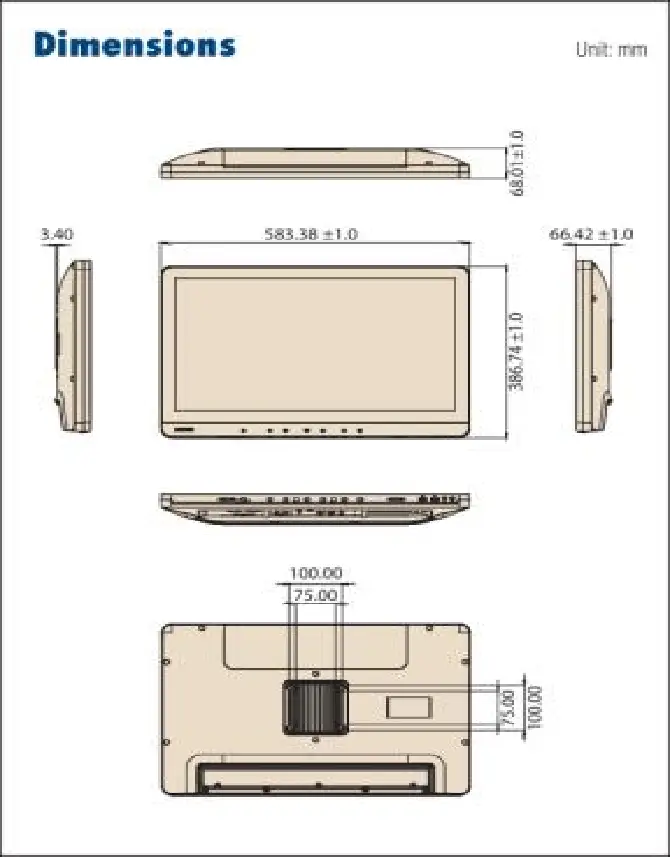

| Physical Characteristics |
Dimensions (W x H x D) |
583 x 387 x 68 mm/22.95 x 15.2 x 2.68 in | |||||||||
| VESA Mount | 100 x 100; 75 x 75 mm | ||||||||||
| Weight | 7.78 kg/17.15 lb | ||||||||||
| Environment | Operating Temperature Storage Temperature |
0 ~ 35 °C/32 ~ 95 ° F 0 ~ 50 °C/32 ~ 122 ° F |
|||||||||
| Warranty | System | 2 years | |||||||||
| Battery Pack | 1 year or capacity 70% and 300 cycles (whichever happens first) | ||||||||||
| *Intel® Celeron® processor available upon request.
**Either PCIe x4 or backup battery can be chosen. |
|||||||||||
Configuration To Order Service (CTOS):
| Ordering Information (Barebone Units) | ||||||||||
| PartNumber (DC Model) |
ProductNumber(ACMo del) |
Descriptions | CPU | RAM | Touch | SSD | RFID | |||
| HPC-100-12A110P-DC | HPC-100-02A110P-AC | Intel® Core i3, with P-CAP touch, W/O RAM and SSD |
i3 | NA | Antimic robial P-CAP |
NA | ||||
| HPC-100-12B110P-DC | HPC-100-02B110P-AC | Intel® Core i5, with P- CAP touch, W/O RAM and SSD |
i5 | NA | Antimic robial P-CAP |
NA | ||||
| HPC-100-12A110R-DC | HPC-100-12A110R-AC | Intel® Core i3, with P- CAP touch, W/O RAM and SSD, with RFID |
i3 | NA | Antimic robial P-CAP |
NA | Yes | |||
| HPC-100-12B110R-DC | HPC-100-12B110R-AC | Intel® Core i5, with P- CAP touch, W/O RAM and SSD, with RFID |
I5 | NA | Antimic robial P-CAP |
NA | Yes | |||
| HPC-100-12A110-DC | HPC-100-12A110-AC | Intel® Core i3, no P-CAP touch, W/O RAM and SSD, no RFID |
i3 | NA | NA | NA | NA | |||
| HPC-100-12B110-DC | HPC-100-12B110-AC | Intel® Core i5, 无 P-CAP touch, W/O RAM and SSD,no RFID |
I5 | NA | NA | NA | NA | |||
