[i Series]
As an OEM/ODM manufacturer, we develop your highly individual monitor solution, starting with the smallest component up to the complex display system.
Every customer has particular needs, depending on the market it serves, and all customers require superior product reliability. Knowing this, WTD uses a consultative approach and delivers partial to fully customized solutions with long-term availability.
After years of partnering with OEMs in industries such as gaming, medical, military/defense, retail, automation/industrial, and transportation, we’re able to bring together the capabilities our customers need:
- Custom engineering
- Strong relationships with key vendors and manufacturers
- Comprehensive solution support
Our ability to successfully serve customers is proven by the number that return to WTD for the second, third and fourth generation of their solutions.
Available Sizes
Platform Specifications
| Size | 10.1″ / 256.54 mm | 13.3″ / 337.82 mm | 15″ / 381.0 mm | 15.6″ / 396.24 mm | 19″ /482.6 mm | 21.5″ / 546.1 mm |
| Aspect Ratio | 16:10 | 16:9 | 4:3 | 16:9 | 5:4 | 16:9 |
| Recommended Resolution | 1280×800 | 1920×1080 | 1600×1200 | 1920×1080 | 1280×1024 | 1920×1080 |
| Display Colors | 16.7M , 50% NTSC | 16.7M , 72% NTSC | 262K , 50% NTSC | 16.7M , 72% NTSC | 16.7M , 72% NTSC | 16.7M , 99% sRGB |
| Panel Brightness | 1000 cd/m² typ. | 1000 cd/m² typ. | 1000 cd/m² typ. | 1000 cd/m² typ. | 1000 cd/m² typ. | 800 cd/m² typ. |
| Contrast Ratio | 700:1 | 1000:1 | 1000 : 1 | 1500:1 | 1000:1 | 1500:1 |
| Viewing Angle (H x V) | 178° / 178° typ. | 178° / 178° typ. | 178° / 178° typ. | 178° / 178° typ. | 178° / 178° typ. | 178° / 178° typ. |
| Housing | Aluminum alloy | Aluminum alloy | 304 Stainless Steel | Aluminum alloy | 304 Stainless Steel | 304 Stainless Steel |
| Certifications and Standards | FCC/CE/VCCI Class B (VGA port), Class A (HDMI port), Canada ICES-003 | |||||

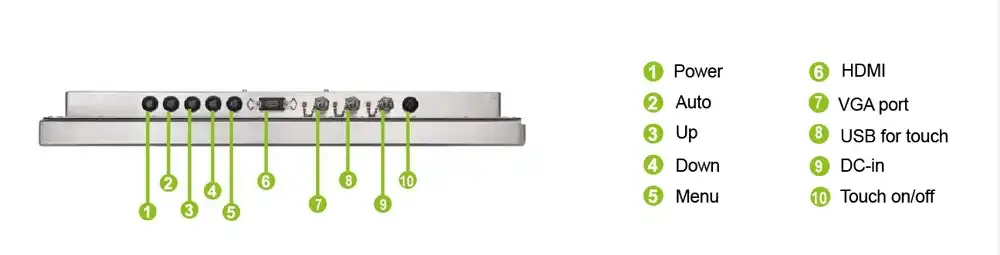

Overview of the I/Os (15″/19″/21.5″ Monitor)
